SkidLift LV & LVE – Industrial Skid Lifts for Ergonomic Handling
SkidLift™ – Mobile Handling Transporter For Skids And Open-Bottom Pallets

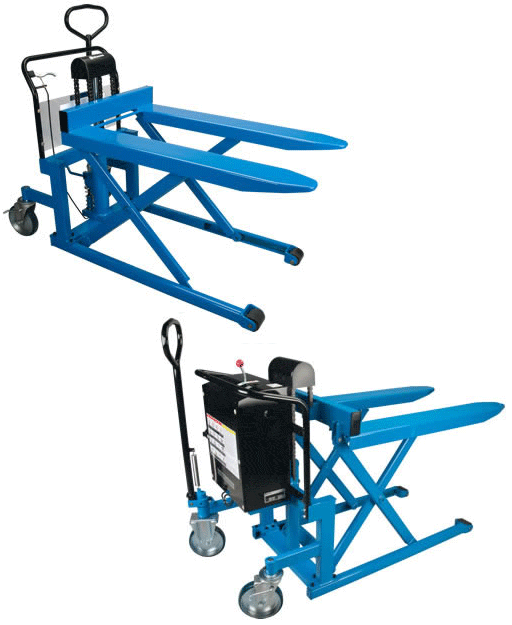

The Bishamon LV and LVE Skid Lifts are durable, fork-style skid lifters designed to raise skids and open-bottom pallets to a safer, more comfortable working height. Built to improve workplace ergonomics and reduce repetitive bending, reaching, and lifting, these high-lift skid jacks help minimize operator strain while improving productivity in warehouses, manufacturing facilities, assembly areas, packaging stations, and industrial workspaces.
With easy mobility and multiple configuration options, Bishamon LV and LVE Skid Lifts are available in eight models, including wide and narrow fork widths and two load capacities to support a variety of material handling needs. These skid lifters are especially useful for applications where standard pallet jacks may not provide proper access to open-bottom pallets, skids, or specialized loads. Operations that primarily handle standard palletized goods can also explore Bishamon’s Blue Label Hand Pallet Trucks for dependable floor-level transport.
A key advantage of the LV and LVE Series is the lower captured roller channel, which provides greater lift stability and safer operation compared with many competing models. Built for heavy-duty performance, Bishamon skid lifts also feature heavy-gauge steel frames, reinforced forks, and strong welded construction for long-term durability in demanding industrial environments.
The advanced hydraulic lifting system uses twin heavy-duty lifting chains to deliver a shorter lift stroke and help reduce cylinder wear over time. Finished with a protective baked enamel coating, these industrial skid lifts are engineered to withstand daily use while providing years of dependable performance with minimal maintenance.
For applications that require both pallet transport and elevated load positioning, Bishamon’s Scissor Lift Pallet Jacks combine mobility and ergonomic lifting in one solution. Facilities that need powered lifting for standard pallets can also explore the UniLift® Electric Pallet Handler, which raises and transports pallets without straddling the load.
For operations looking to improve skid handling, open-bottom pallet lifting, and ergonomic material positioning, Bishamon LV and LVE Skid Lifts provide a dependable solution that combines strength, mobility, stability, and operator-focused safety. Explore Bishamon’s complete range of skid lifts and pallet trucks to find the right material handling equipment for your workflow.
- LOAD CAPACITY - Load Capacities To 2200 Lbs.
- EASY MOBILITY - Premium Wheels And Push Handle For Easy Mobility
- STABILITY - Unique Captured Scissor Design Provides Enhanced Stability
- MODELS - Battery Operation And Manual Lift Models Available
Skid Lift LV Table Specifications
Skif Lift LV (Non-Battery) Specifications
| Model | Travel | Capacity | Overall Fork Dimensions Width x Length | Fork Height Lowered | Fork Height Raised | Pumps to Max. Height | Approx. Ship Weight |
|---|---|---|---|---|---|---|---|
| LV-10 | 29.5 in. | 1,000 lbs. | 20.5 x 42.5 in. | 3.3 in. | 32.8 in. | 50 | 300 lbs. |
| LV-10W | 29.5 in. | 1,000 lbs. | 27.0 x 42.5 in. | 3.3 in. | 32.8 in. | 50 | 321 lbs. |
| LV-100 | 29.5 in. | 2,200 lbs. | 20.5 x 42.5 in. | 3.3 in. | 32.8 in. | 48 | 325 lbs. |
| LV-100W | 29.5 in. | 2,200 lbs. | 27.0 x 42.5 in. | 3.3 in. | 32.8 in. | 48 | 376 lbs. |
Skid Lift LVE Table Specifications
Skid Lift LVE (Battery Operated) Specifications
| Model | Travel | Capacity | Overall Fork Dimensions Width x Length | Fork Height Lowered | Fork Height Raised | Lift Time Seconds | Approx. Ship Weight |
|---|---|---|---|---|---|---|---|
| LVE-50E | 29.5 in. | 1,000 lbs. | 20.5 x 42.5 in. | 3.3 in. | 32.8 in. | 7 | 340 lbs. |
| LVE-50WE | 29.5 in. | 1,000 lbs. | 27.0 x 42.5 in. | 3.3 in. | 32.8 in. | 7 | 370 lbs. |
| LVE-100E | 29.5 in. | 2,200 lbs. | 20.5 x 42.5 in. | 3.3 in. | 32.8 in. | 7 | 440 lbs. |
| LVE-100WE | 29.5 in. | 2,200 lbs. | 27.0 x 42.5 in. | 3.3 in. | 32.8 in. | 7 | 460 lbs. |
LV / LVE Design Features
- Easily accessible hand controls
- Heavy gauge steel and sturdy welds throughout
- Steel lifting forks
- Twin heavy-duty lifting chains with a 2 to 1 lifting ratio
- Lower captured roller channel provides increased stability
- 180-degree rotating steering handle on LV-100 models
- Polyurethane wheels with quality bearings
- Superior hydraulic systems are proven on a range of applications
- Quality baked enamel finish
- Optional tabletop accessory converts skid lift to a mobile lift table
- Easily accessible up/down lever hand control
- Automatic battery charger on LVE models
- 12 volt, deep cycle battery on LVE models
Skid Lift Highlights
LV Handle Manual Pump
LV-100 Dual Handle Control
Skid Lift Foot Pump
LV (Manual Pump) Models LV-100 Foot Pump
Battery Control Box
LVE (Battery Operation) Models LVE Power Unit Control Box
LVE Battery Lever Control
LVE (Battery Operation) Models LVE Raise/Lower Lever Control
Bishamon SkidLift LV & LVE FAQs
Bishamon skid lifts are designed to handle demanding heavy-duty tasks. This series of skid lifts has a lifting capacity of 2200 lbs with an offset 180-degree rotating steering handle. Their captured scissor design provides enhanced stability. LV and LVE lift tables have heavy gauge steel and sturdy welds throughout.
The mobility feature on the LV and LVE skid lifts contributes to increased productivity and reduced worker injuries. The lower captured roller channel ensures superior stability and significantly increases safety during operation. The caster has a locking foot brake.
Bishamon LV and LVE skid lifts raise loads to a convenient working height. Each LV and LVE model has adjustable lift and lowering controls, enabling precise positioning of the forks at any point between the lower and upper travel limits.
Bishamon’s lifts offer versatility and have a dual function – lifting and lowering skids (including open-bottom and euro-style pallets) while also providing mobility for effortless movement in and out of the work cell.
The power source for manual Bishamon lift models has an integrated foot pump while a 12volt DC power unit provides the lifting power for electric models.
Our LV/LVE series skid lifts improve material handling productivity and increase efficiency to meet a variety of demanding applications while reducing potential worker injury. When it comes to improving ergonomics and facilitating workforce access, Bishamon skid lifts excel, offering a rugged, high-rise, fork-style design.
LV series skid lifts are available in eight models including both wide and narrow fork widths and capacities to 2,200 lbs. to fit almost any application.
The Bishamon LV and LVE skid lift table is controlled using an easily accessible up/down hand-held control. This hand-held control is connected to the lift via a cable and allows the operator to raise or lower the platform by pressing the corresponding buttons or switches. This method provides precise control over the lifting and lowering functions, making it easier for operators to safely maneuver the skid lift tables as needed.
Bishamon lifts are built to endure for many years with minimal maintenance requirements.
Like any other equipment, maintenance requirements for Bishamon LV and LVE lift tables are essential to ensure safe and reliable operation. While specific maintenance guidelines may vary depending on the model and usage, here are some general maintenance tasks to follow:
- Regular Inspections: Conduct routine visual inspections before each use to check for visible damage, loose fasteners, hydraulic fluid leaks, or worn components. Ensure that all safety features are in proper working order.
- Cleaning: Keep the lift table clean and free from debris, dirt, and foreign objects that may interfere with its operation. Clean the platform and base as needed to maintain a safe working environment.
- Lubrication: Lubricate moving parts, such as pivot points, rollers, and hinges, as recommended by the manufacturer. Use the appropriate lubricants specified in the user manual.
- Hydraulic System: Inspect the hydraulic system for leaks, damaged hoses, or any signs of hydraulic fluid loss. Address any hydraulic issues promptly, as they can affect lifting performance.
- Battery Maintenance (if applicable): If your lift table is powered by a battery, follow the manufacturer’s guidelines for battery maintenance, including regular charging and proper storage.
- Load Capacity: Do not exceed the lift table’s rated load capacity, as overloading can lead to equipment damage and cause safety hazards.
- Platform Alignment: Ensure that the platform is properly aligned with the base and any attached equipment to prevent uneven loading or stability issues.
- Safety Features: Verify that all safety features, such as emergency stop buttons, safety rails, and limit switches, are functioning correctly.
- Operator Training: Ensure that operators are properly trained in the safe use and maintenance of the lift table. Encourage them to report any issues or concerns promptly.
- Manufacturer’s Guidelines: Always follow the manufacturer’s recommended maintenance procedures and intervals, which can be found in the user manual specific to your lift table model.
- Professional Maintenance: For more extensive maintenance or repairs, consider having a qualified technician or service provider perform periodic inspections and maintenance tasks, especially for the hydraulic components and electrical systems.
The specific maintenance requirements for your Bishamon LV and LVE lift tables may vary depending on the model, so it’s important to refer to the user manual for detailed maintenance guidelines. Regular maintenance is essential to ensure the safety, efficiency, and longevity of your lift tables.
