CompacLift® Series – Versatile, Compact Scissor Lift Tables

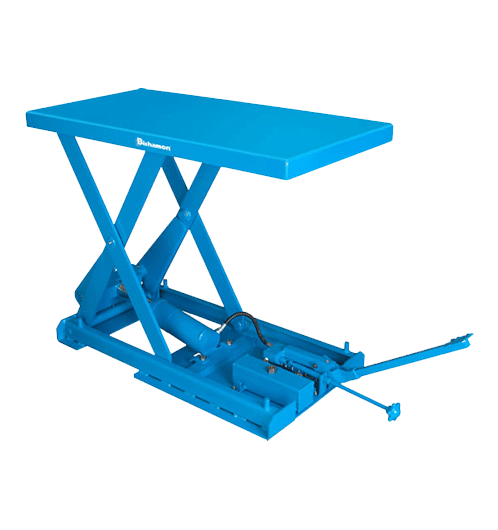

Bishamon X-Series CompacLift™ Tables are compact, ergonomic lift tables designed for light- to medium-duty lifting, positioning, and material handling in production lines, assembly areas, workstations, and other space-constrained environments. Built to improve safety and efficiency, these compact scissor lift tables raise materials to a comfortable working height, helping reduce repetitive bending, lifting, reaching, and operator fatigue during daily tasks.
CompacLift tables are available in manual, electric, and air-operated models to match a variety of facility requirements and power preferences. Manual units use a removable foot pedal for simple operation, while electric models feature a user-friendly hand control for smooth, consistent lifting. Their space-saving footprint makes CompacLift tables ideal for facilities that need dependable ergonomic lifting equipment without sacrificing valuable floor space.
Constructed from heavy-gauge steel and reinforced with sturdy welds, these rugged industrial lift tables are built to withstand regular use in demanding work environments. Entrapped rollers enhance platform stability throughout the lift cycle, while the baked enamel finish helps protect against wear, corrosion, and harsh operating conditions. Designed for low-maintenance performance, CompacLift tables provide reliable service in warehouses, manufacturing facilities, packaging stations, inspection areas, and maintenance departments.
Engineered to support worker comfort and productivity, CompacLift tables position materials at the optimal height for parts handling, assembly, inspection, packaging, and material staging. Bishamon offers five weight capacities, four platform sizes, and both single- and double-scissor configurations, making it easier to select the right compact lift table for a specific application.
Facilities looking for additional compact options can explore Bishamon’s small scissor lift tables, while operations that need portable lifting can consider MobiLift™ mobile scissor lift tables. For clean, air-powered operation, the EZ UP® Pneumatic Lift Tables provide another flexible solution. Explore Bishamon’s complete range of industrial lift tables to compare additional capacities, power options, and configurations.
- SPACE - Hydraulic Lift Tables Designed For Confined Work Space Requirements
- CAPACITY - Capacities Range From 440 To 1650 Lbs. With Various Fixed Platform Sizes
- 3 MODES OF OPERATION - Manual Hydraulic With Foot Pump, Electro-Hydraulic With Push Button Or Air-Hydraulic With Foot Pedal
- MODEL TYPES - Hand Control On Electric Models
CompacLift Specifications
Bishamon CompacLift X Series
C = Manual Foot Pump Operation
E = Electro-Hydraulic Operation
P = Air-Hydraulic Operation
S = Double Scissors
CompacLift Lift Table Specifications
| Model | Travel | Capacity | Platform Size (A) x (B) | Platform Height Lowered (C) | Platform Height Raised (D) | Foot Pumps To Max. Height(C Models) | Approx. Time Up | Approx. Time Down | Approx. Ship Weight |
|---|---|---|---|---|---|---|---|---|---|
| X-20C | 16.0 in. | 440 lbs. | 19.5 x 25.5 in. | 5.00 in. | 21.00 in. | 28 | – | – | 121 lbs. |
| X-25C | 22.0 in. | 550 lbs. | 19.5 x 32.0 in. | 5.00 in. | 28.00 in. | 42 | – | – | 157 lbs. |
| X-25E | 22.0 in. | 550 lbs. | 19.5 x 32.0 in. | 6.00 in. | 28.00 in. | – | 9 | 7 | 187 lbs. |
| X-25P | 22.0 in. | 550 lbs. | 19.5 x 32.0 in. | 6.00 in. | 28.00 in. | – | 36 | – | 204 lbs. |
| X-50C | 25.5 in. | 1100 lbs. | 20.0 x 40.0 in. | 6.00 in. | 31.50 in. | 46 | – | – | 302 lbs. |
| X-50E | 25.5 in. | 1100 lbs. | 20.0 x 40.0 in. | 6.00 in. | 31.50 in. | – | 12 | 10 | 235 lbs. |
| X-50P | 25.5 in. | 1100 lbs. | 20.0 x 40.0 in. | 6.00 in. | 31.50 in. | – | 40 | – | 235 lbs. |
| X-75C | 25.5 in. | 1650 lbs. | 20.0 x 40.0 in. | 6.00 in. | 31.50 in. | 67 | – | – | 256 lbs. |
| X-75E | 25.5 in. | 1650 lbs. | 20.0 x 40.0 in. | 6.00 in. | 31.50 in. | – | 17 | 14 | 303 lbs. |
| X-75P | 25.5 in. | 1650 lbs. | 20.0 x 40.0 in. | 6.00 in. | 31.50 in. | – | 58 | – | 288 lbs. |
| X-30SC | 45.0 in. | 660 lbs. | 20.0 x 40.0 in. | 9.25 in. | 54.25 in. | 54 | – | – | 315 lbs. |
| X-30SE | 45.0 in. | 660 lbs. | 20.0 x 40.0 in. | 9.25 in. | 54.25 in. | – | 14 | 11 | 345 lbs. |
| X-30SP | 45.0 in. | 660 lbs. | 20.0 x 40.0 in. | 9.25 in. | 54.25 in. | – | 47 | – | 345 lbs. |
| X-50SE | 25.5 in. | 1100 lbs. | 18.0 x 25.5 in. | 8.25 in. | 33.75 in. | – | 14 | 11 | 235 lbs. |
| X-50SP | 25.5 in. | 1100 lbs. | 18.0 x 25.5 in. | 8.25 in. | 33.75 in. | – | 47 | – | 235 lbs. |
CompacLift Design Features
- Compact design
- Manual, electric and air operated models available
- Constructed with heavy-gauge steel and sturdy welds throughout
- Steel work platforms
- Entrapped rollers for increased stability
- Superior hydraulic systems proven on a range of Bishamon lift products
- Hand control on electric models
- Removable & storable operator’s foot pedal and lowering control on manual models
- Wide range of table sizes
- Quality baked enamel finish
CompacLift Highlights
Foot Pedal and Lowering Control
Removable & Storable Operator’s Foot Pedal And Lowering Control On Manual Operation Models
Hydraulic Systems
Superior Hydraulic Systems Proven On A Wide Range Of Bishamon Lift Products
Bishamon CompacLift X Series FAQs
Weight capacities of the Bishamon CompacLift X Series lift tables range from 440 to 1650 lbs. and include various fixed platform sizes. Four table sizes are available with single or double scissors, for almost any application.
Our CompacLift X Series types of Bishamon lift tables are manual hydraulic with a foot pump, electro-hydraulic with push button including hand control for ease of use, or air-hydraulic with a foot pedal. Each model has a compact design, making them perfectly suited for environments where workspace is at a premium.
Bishamon Compact scissor lift tables are perfectly suited for medium to light-duty lifting and positioning tasks within production line manufacturing settings. Their design focuses on ergonomics, durability, and convenience, making them an ideal choice for enhancing operational efficiency.
The X-Series CompacLift tables enhance worker safety and efficiency by reducing repetitive lifting tasks and alleviating worker strain. By adjusting materials to the ideal working heights, they promote comfort and productivity.
Our Bishamon compact lift tables are engineered to meet the demands of limited workspace environments.
Constructed from heavy-gauge steel and reinforced with robust welds, our Xlifts have significant strength. The entrapped rollers further improve stability. A high-quality baked enamel finish shields the tables from adverse environmental elements. These durable CompacLift tables are built to withstand demanding work environments, requiring little maintenance to maintain their integrity.
Compact lift tables ensure worker safety and increase productivity by reducing the need for repetitive lifting and decreasing strain on workers. By elevating materials to ideal working heights, they promote comfort and efficiency in the workplace.
The Bishamon CompacLift X Series hydraulic lift tables offer three operation modes for different industrial needs and environments. Each mode has its unique advantages and applications:
Manual Operation:
- Pros: Cost-effective, simple, no power required, removable foot pedal.
- Cons: Manual effort, not for heavy/repetitive tasks.
Electric Operation:
- Pros: Effortless operation, precise control with push button, heavy load capacity.
- Cons: Requires electricity
Air-Operated Operation:
- Pros: Safe in hazardous environments, durable, foot pedal control, no electricity needed.
- Cons: Needs compressed air, noisier, variable speed control.
CompacLift X Series platforms range in sizes from 18 x 25.5 to 20 x 40 inches.
Bishamon offers a one-year warranty from the date of shipment against defects in materials and workmanship. This warranty excludes problems due to misuse, mishandling, accidents, shipping damage, modifications, or unauthorized repairs of any Bishamon product or component. For comprehensive warranty information, please contact Bishamon directly.
Each Bishamon product is designed and constructed to support positioning tasks in challenging work conditions, promoting durability and operational longevity. This commitment is backed by more than 55 years of Bishamon’s reliable performance.
Maintaining your Bishamon CompacLift X Series lift table involves practices to ensure it operates efficiently and safely over its lifespan. Consult the specific maintenance instructions provided in your product’s manual for additional information about your specific model. These general guidelines can help you get started:
Regular Inspections:
- Perform routine inspections to check for any signs of wear and tear or damage. Focus on hydraulic systems, lifting mechanisms, and structural components.
Hydraulic System Maintenance:
- Check the hydraulic fluid level regularly and top it off if needed with the specified type of fluid.
- Inspect hydraulic hoses and fittings for leaks or damage. Replace any worn or damaged parts immediately.
Lubrication:
- Regularly lubricate moving parts, such as pivot points and bearings, to reduce friction and wear. Use the recommended lubricant for your model.
Cleaning:
- Keep the lift table clean from debris and dirt that could accumulate in moving parts or obstruct the table’s operation.
- Wipe down the surface and remove any materials that could interfere with the lift mechanism.
Electrical Components (for electric-operated models):
- Inspect electrical cords and connections for signs of wear or damage. Ensure that all electrical components are secure and in good working order.
- Avoid exposing electrical parts to moisture or water to prevent electrical failures and hazards.
Air System Maintenance (for air-operated models):
- Check the air compressor and hoses for leaks or wear. Ensure that the air system is adequately pressurized and functioning efficiently.
Safety Mechanisms Check:
- Regularly test safety features, such as limit switches and safety locks, to ensure they are functioning correctly.
Professional Inspections:
- Consider scheduling periodic professional inspections and maintenance services to ensure that your lift table is in optimal condition and to address any potential issues before they become significant problems.
Always follow the maintenance schedule and procedures outlined in your Bishamon CompacLift X Series manual, as neglecting maintenance can lead to decreased performance, increased wear, and potential safety hazards. Regular care and preventive maintenance are key to prolonging the life and functionality of your lift table.
