Bishamon UniLift Forklift & Pallet Positioner
Bishamon UNILIFT™ Pallet Lifter / Pallet Transporter / Work Positioner”
The Bishamon UniLift® is a versatile electric pallet handler and high-lift pallet jack designed to lift, transport, and position standard pallets without straddling the load. Deployable outriggers allow it to handle GMA pallets, CHEP pallets, and skids, while a 2,000 lb. capacity and lift heights up to 36 inches unloaded help reduce manual handling and improve workplace ergonomics.
By combining pallet transport and elevated load positioning in one compact unit, the UniLift supports loading, unloading, assembly, staging, and workstation applications. Polyurethane wheels provide smooth maneuverability through warehouses and confined work areas, making it a practical option for facilities that need flexible pallet access. Explore additional high-lift pallet jacks for other ergonomic lifting applications.
The UniLift uses a 24V DC battery system with an onboard automatic charger for dependable powered lifting. Electro-mechanical outrigger actuation, integrated position sensors, fork raise/lower controls, and LED battery indicators give operators convenient control over pallet movement and positioning.
Unlike equipment designed only for open-bottom skids, the UniLift can accommodate multiple pallet styles. Facilities primarily handling skids can compare the LV and LVE Skid Lift Series, while Blue Label Hand Pallet Trucks provide durable floor-level pallet transport.
For operations focused on pallet transport, ergonomic load positioning, and reducing repetitive lifting, the UniLift provides a compact, powered solution for demanding material handling environments. Explore Bishamon’s full range of Skid Lifts and Pallet Trucks for additional pallet handling options.
- HYDRAULIC CAPACITIES – Easily Handles Standard Pallets, CHEP Pallets And Skids To 2000 Lbs. Without Straddling
- ALL-IN-ONE PALLET TRANSPORTER – Work Positioner Eliminates Need For Fork Lift And Lift Table
- APPLICATION – Ideal For Tight Work Cell Application
- ELECTRIC HYDRAULIC SYSTEM – Electric Hydraulic Powered Up And Down, Manual Push. Issued Patents: United States No. 8,376,089; China No. ZL200780049482.8; Japan No. 5,575,484; Korea No. 10-1244363 And European Patent No. 2102092. Granted With Effect In France, Germany, Italy, United Kingdom.
UniLift Specification Drawing (Pallet Jack Mode)
UniLift Specification Drawing (High Lift Mode)
Unilift Pallet Positioner Specifications
| Model | Pallet Jack Mode Capacity | High Lift Mode Capacity 20” Load Center | High Lift Mode Capacity 24” Load Center | Approximate Shipping Weight |
|---|---|---|---|---|
| UNI-20 | 2,000 lbs. | 2,000 lbs. | 1,700 lbs. | 629 lbs. |
Unilift Add-on Options
| Model | Description | |||
|---|---|---|---|---|
| UNI-OLW-01 | Outrigger Load Wheels (allows fine tuning of load position with forks raised- see notes) | |||
| UNI-HCO-01 | Hand Control (provides remote operation when forks are raised) | |||
| UNI-CMK-01 | Carriage Maintenance Kit (blocks carriage in raised position for maintenance) | |||
Highlighted Features
- Can be used with standard GMA pallets, 48” x 40” CHEP pallets and/or skids
- Dual-purpose product allows for both transport and load lifting
- Handles and steers like a standard pallet jack
- Lifting fork height up to 36”
- Lift cap. up to 2000# (see chart)
- Multi-roller fork entry system for easy pallet entry and exit
- Foot brake on steering wheels
- On-board, automatic battery charger
- Efficient 24 VDC battery system powers lift operation
- Electro-mechanical outrigger actuation with position sensors
- 8” diameter polyurethane steering wheels
- 3” diameter polyurethane load wheels
- Durable powder coated finish
- Electronic operator console with “raise and lower” buttons, dual function key /battery disconnect switch, outrigger position ED’s, charger status and battery condition LED’s
Unilift Highlights
Control Panel

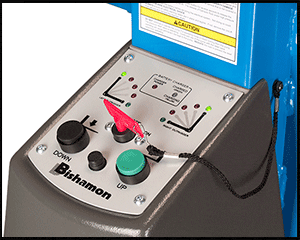

UniLift Operator Control Panel
Pallet Transport Low

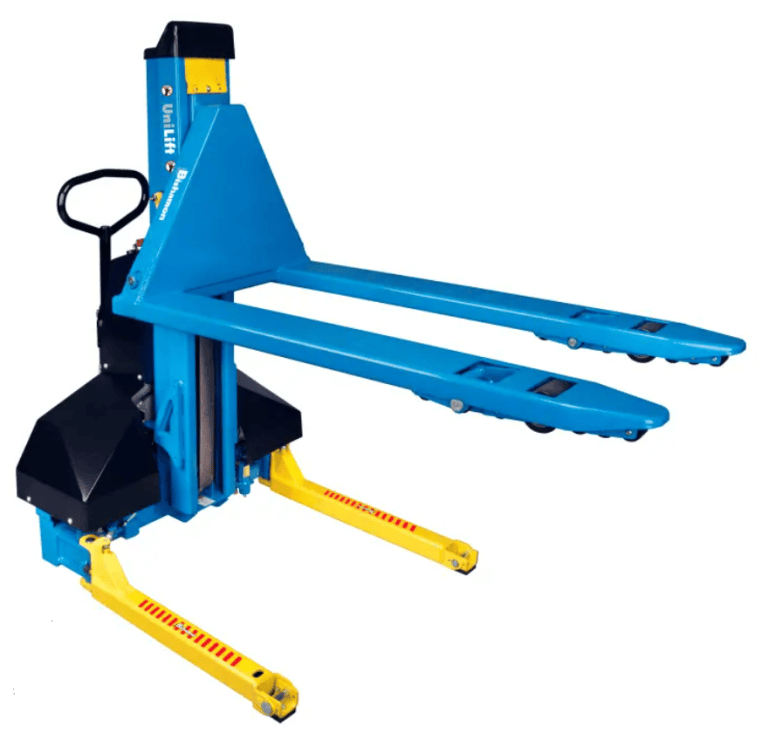

UniLift In Low (Pallet Transport) Position
Pallet Transport High

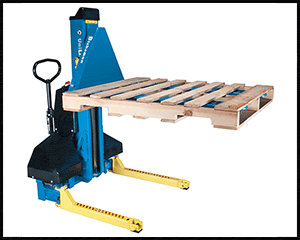

UniLift In Work Positioner (High Lift) Mode
Multi-Roller

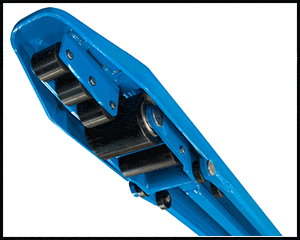

Multi-Roller Fork Entry System For Easy Pallet Entry And Exit
UniLift FAQs
The Bishamon UniLift forklift and pallet positioner has a lift cap up to 2000 lbs and reaches a height of up to 36 inches (unloaded).
In pallet jack mode, the Uni-20 Uni Lift is 35.5 inches by 27 inches. In high-lift mode, its dimensions are 36 inches by 70 inches.
The UniLift can be easily used with standard GMA pallets, 48” x 40” CHEP pallets, and/or skids without straddling. It’s ideal for tight work cell applications. This dual-purpose product allows for both transport and load lifting and the work positioner eliminates the need for a forklift and lift table.
The Bishamon Uni-Lift handles and steers like a standard pallet jack with electric hydraulic power. The pallet transporter is powered by an efficient 24 VDC battery system and an on-board, automatic battery charger. It also features electro-mechanical outrigger actuation with position sensors.
The electronic operator console contains convenient buttons that raise and lower the forks, and LED indicators that display the battery status. It has multi-roller fork entry system for easy pallet entry and exit
The UniLift has a foot brake on the steering wheel to ensure safety.
Bishamon pallet lifters are the best-engineered, ergonomic equipment in the industry.
The Bishamon UniLift has three options that can be customized for specific applications including:
- Outrigger load wheels that allow for fine-tuning of load position with forks raised.
- A hand controller provides remote operation when forks are raised.
- The carriage maintenance kit blocks the carriage in the raised position for maintenance.
Bishamon provides warranties for its products free from defects in material and workmanship for one year from the date of initial shipment. This warranty shall not apply to any misuse, mishandling, accident, shipping, alteration, or unauthorized repair of any Bishamon product or part. For complete details of the warranty, please contact Bishamon.
To get a quote or purchase a Bishamon UniLift pallet positioner, please contact us.
