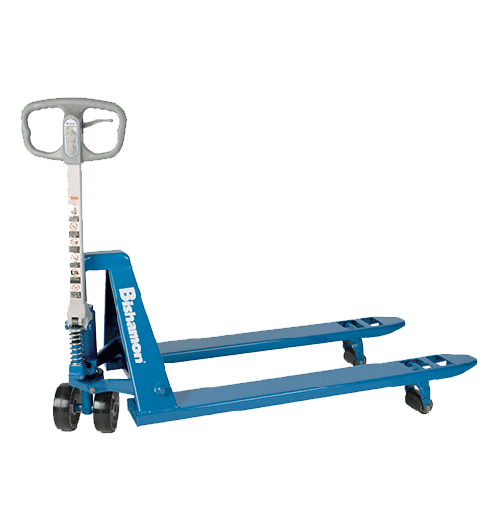

Blue Label BS Series - Bishamon Hand Pallet Jack

Bishamon Hand Pallet Truck – Blue Label™ Series – Premium, Heavy-Duty Pallet Trucks

Bishamon BS Series Blue Label Hand Pallet Trucks are easy to use and exceptionally durable. These premium pallet trucks have many features not found on most all competitive models and provide unsurpassed rollability.

They are designed and manufactured to easily move palletized loads. By utilizing top quality components and advanced manufacturing techniques, Bishamon’s BS Series pallet trucks can be expected to outlast competitive models that promise comparable quality.

Bishamon pallet trucks are completely rebuildable and offer many extra years of valued service. Blue Label Bishamon Hand Pallet Trucks are available in three capacities, two fork widths, four fork lengths and two fork heights. A heavy duty model increases capacity to 6,500 lbs. and a low profile model decreases fork height to 2 in.

Blue Label Pallet Truck Specifications

ModelCapacityOverall Fork Dim. A1 LengthOverall Fork Dim. A2 WidthFork Height B1 LoweredFork Height B2 RaisedApprox. Ship Weight
BS-55A5,500 lbs.48 in.27.0 in.2.9 in.7.8 in.217 lbs.
BS-55B5,500 lbs.42 in.27.0 in.2.9 in.7.8 in.215 lbs.
BS-55C5,500 lbs.36 in.27.0 in.2.9 in.7.8 in.205 lbs.
BS-55D5,500 lbs.32 in.27.0 in.2.9 in.7.8 in.198 lbs.
BS-55E5,500 lbs.48 in.20.5 in.2.9 in.7.8 in.198 lbs.
BS-55F5,500 lbs.42 in.20.5 in.2.9 in.7.8 in.190 lbs.
BS-55G5,500 lbs.36 in.20.5 in.2.9 in.7.8 in.182 lbs.
BS-55H5,500 lbs.32 in.20.5 in.2.9 in.7.8 in.174 lbs.
BS-25A2,500 lbs.48 in.27.0 in.2.0 in.5.5 in.203 lbs.
BS-65A6,500 lbs.48 in.27.0 in.3.3 in.8.0 in.281 lbs.

Blue Label Highlights

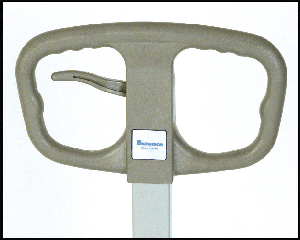

Bishamon Pallet Lift Table Blue Label Handle

Hand Lever Control

Three-Position Control Lever Provides Fingertip Control Of All Hydraulic System Functions With The Handle In Any Position

Bishamon Pallet Lift Table Blue Label Piston

Hydraulic System

Self-Contained Rebuildable Hydraulic System

Bishamon Pallet Lift-Table Blue Label Reinforced Fork

Strength and Durability

Formed Fork For Added Strength And Durability

Bishamon Pallet Lift Table Blue Label Front Steel Diverter

Debris Diversion

Formed Steel Entry Slide Diverts Debris And Guides Pallet Truck Into Pallet

Blue Label Design Features

  • Ergonomic three position hand lever controls lift, lower and neutral functions with the handle in any position
  • Handle swivels through 210 degrees
  • Steering head and hydraulic assembly use quality, low-friction thrust bearings

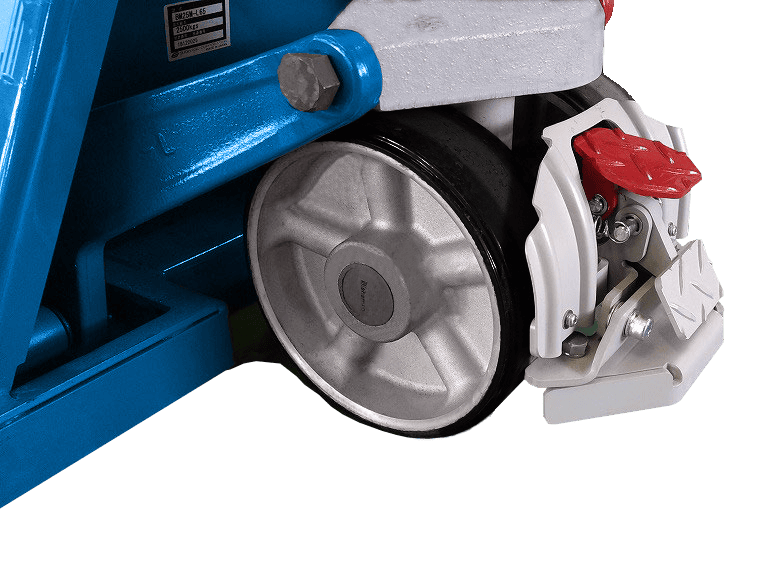

  • High quality polyurethane wheels and load rollers provide superior rollability and durability
  • Premium quality ball bearings in all wheels and load rollers
  • Rugged construction, with high strength steel and continuous welds
  • One piece formed forks add strength and durability
  • Additional fork reinforcement plate provides extra strength to keep forks parallel
  • Durable formed steel entry slide guides truck into pallets and diverts debris
  • Solid steel, non-adjustable push rods increase durability
  • High capacity (6,500 lb model) has dual load rollers in each fork
  • Hydraulic assembly and frame are completely rebuildable
  • Quality baked enamel finish

Buy Parts for BS Blue

Bishamon Blue Label BS Series Hand Pallet Jack FAQs

Available weight capacities of the Blue Label BS Series Hand Pallet Jack are 2500, 5500, and 6500 lbs. with a variety of fork considerations. Our heavy-duty models have an increased capacity of 6500 lbs.

Yes, there are two fork widths, four fork lengths, and two fork heights. Our low profile model decreases fork height to 2 in. One-piece formed forks add strength and durability. The additional fork reinforcement plate provides extra strength to keep forks parallel.

The Blue Label BS series has a self-contained rebuildable hydraulic system. The steering head and hydraulic assembly use quality, low-friction thrust bearings.

Its ergonomic three-position hand lever controls lift, lower, and neutral functions with the handle in any position and the handle swivels through 210 degrees which reduces physical strain and contributes to better ergonomics while maximizing the use of available space.. Due to their top-quality components and advanced manufacturing techniques, Bishamon Blue Label BS pallet jacks are exceptionally durable, outlasting many competitors.

Pallet jacks are designed to maneuver in relatively tight spaces, including narrow aisles and confined areas, which is one of their advantages. The exact suitability for narrow spaces may vary based on the type and specific width of the pallet jack, the turning radius, and the width of the aisles in your workspace.

Maintenance requirements for the Bishamon Blue Label BS pallet jack, or any similar pallet jack, include routine inspections, cleaning, lubrication, and occasional adjustments to ensure safe and efficient operation. Here are some general maintenance guidelines for pallet jacks:

Regular Inspection: Conduct daily or pre-use inspections to check for visible damage, loose parts, or worn components. Ensure that wheels, forks, handles, and other critical parts are in good condition.

Cleaning: Keep the pallet jack clean to prevent debris from interfering with its operation. Remove dirt, dust, and foreign objects from the wheels, forks, and load rollers.

Lubrication: Lubricate moving parts as recommended. Pay attention to the wheel bearings, pivot points, and handle pivot areas. Use the appropriate lubricants specified in the user manual.

Tighten Loose Fasteners: Periodically check and tighten any loose bolts, nuts, or screws to maintain the structural integrity of the pallet jack.

Wheel and Tire Maintenance: Inspect the wheels and tires for wear and damage. Replace them if they are worn out or damaged to ensure smooth movement.

Handle and Controls: Check the handle and control mechanisms for proper operation. Ensure that the hand lever, release lever, and other controls function smoothly and securely.

Load Wheel Alignment: Verify the load wheels and forks are properly aligned. Misaligned wheels can affect stability and maneuverability.

Hydraulic System: Inspect the hydraulic system for leaks or signs of hydraulic fluid loss. Address any issues promptly to maintain lifting capacity.

Load Capacity: Do not exceed the pallet jack’s rated load capacity, because overloading can lead to premature wear and damage.

Operator Training: Ensure that operators are properly trained in the safe use and maintenance of the pallet jack. Encourage them to report any issues or concerns.

Manufacturer’s Guidelines: Always follow the manufacturer’s maintenance recommendations provided in the user manual specific to the Bishamon Blue Label BS pallet jack model you have.

Professional Maintenance: For more extensive maintenance and repairs, consult a qualified technician or service provider to perform periodic inspections and maintenance tasks, especially for hydraulic components.

Maintenance requirements may vary based on usage and operating conditions. Refer to the specific Bishamon user manual provided for your pallet jack model. Regular maintenance is crucial to ensure the longevity, safety, and efficiency of your pallet jack.

The suitability of the Bishamon Blue Label BS Series for heavy-duty applications depends on the specific model and its load capacity rating within the series. The Bishamon Blue Label BS Series includes several models with varying load capacities and specifications. Some models within the series are designed and rated for heavier loads, making them suitable for more demanding and heavy-duty applications. These models often have reinforced frames, stronger components, and higher load capacity ratings compared to lighter-duty models. Check your Blue Label BS Series model user manual for its specifications.

The 210-degree swivel handle featured on a Bishamon Blue Label Series pallet jack significantly enhances maneuverability in tight spaces. It achieves this by allowing the operator to smoothly pivot the handle through a wide range of motion, providing precise control and reducing the need for repositioning. In crowded or congested areas, the swivel handle proves especially valuable by simplifying navigation and ensuring operators can maintain a comfortable hand position. It also reduces physical strain while providing better ergonomics. Overall, the 210-degree swivel handle enhances the pallet jack’s ability to operate efficiently and effectively in challenging and confined workspaces.

The pallet jack is constructed with high-strength steel and continuous welds. Its solid steel, non-adjustable push rods increase durability and it has a durable formed-steel entry slide that guides the truck into pallets and diverts debris. Its outstanding rollability is a result of its high-quality polyurethane wheels and load rollers.

Bishamon is the Blue Label BS Series  Hand Pallet Jack manufacturer and it can be purchased by contacting Bishamon.

At Bishamon, we are dedicated to delivering innovative, high-quality ergonomic products that enhance worker safety and productivity. Our primary objective is to go above and beyond our customers’ expectations by consistently improving our products and engaging with our customers to provide exceptional quality, timely delivery, and years of valued service.
