Alpha Series Stationary Scissor Lift Tables
ALPHA™ Electric-Hydraulic Lift Tables Are Available in Three Models – L22K, L44K & L66K
ALPHA Electric-Hydraulic Lift Tables
The Bishamon ALPHA™ Series is a heavy-duty stationary lift table designed for demanding industrial lifting and material positioning applications. These electric hydraulic scissor lift tables raise, lower, and position heavy loads at a more comfortable working height, helping reduce repetitive bending, reaching, and manual lifting in manufacturing facilities, warehouses, assembly lines, packaging areas, and industrial workstations.
Engineered for smooth, stable operation, ALPHA industrial scissor lift tables provide dependable load positioning for applications that require strength, precision, and long-term durability. Multiple configurations allow facilities to match the appropriate lift capacity, platform size, and working height to assembly, machine feeding, material staging, inspection, and other repetitive handling tasks.
For businesses comparing Bishamon hydraulic lift tables, the ALPHA Series provides a durable stationary solution built for high-use industrial environments. Explore Bishamon’s complete range of hydraulic lift tables and industrial lift tables to compare additional stationary, compact, low-profile, and mobile lifting solutions.
- LIFTING CAPACITIES – Hydraulic Lift Tables In 2,200 Lb. Capacities
- Modular design with a wide variety of turn table platforms available for factory or field installation.
- Self-lubricating, maintenance-free bushings at all pivot points, ensuring effortless operation and longevity.
- SAFETY – An easy-to-operate and safety during operation. maintenance pin simplifies upkeep, minimizing downtime and maintenance costs.
STANDARD FEATURES
"Get a closer look at the features—hover now!"
- Premium quality high-load ball bearings in all wheels and load rollers ensure smooth operation and higher cycle capabilities.
- Continuous axles at rollers, providing consistent and reliable movement.
- Flow Limiting Valves prevents sudden drops and ensures safe lowering by controlling the descent.
- Unitized, compact internal power unit and reservoir combination, optimizing space and performance.
- Intuitive and user-friendly plug and play controls streamline operation, improving productivity.
- Compliant with ANSI MH 29.1:2020 safety standard, guaranteeing peace of mind.
- All electrical components are UL or CSA certified, meeting the highest standards of safety and reliability.
- Alpha L22K and L44K models: 50,000 cycles per year ; Alpha L66K models: 35,000 cycles per year
- Industry leading 5-year warranty on parts and 2-years on labor. (For U.S.A. and Canada only)
Alpha Lift Table Specifications
L22K Lift Table Specifications
| Model | Travel (in.) | Capacity (lbs.) | Platform Size (in.) | Height Lowered (in.) | Height Raised (in.) | Voltage | Approx. Up Time at Full Capacity (sec.) | Approx. Down Time at Full Capacity (sec.) | Approx. Ship Wt (lbs.) |
|---|---|---|---|---|---|---|---|---|---|
| L22K-3153 | 31.25 | 2,200 | 31 x 53 | 8.75 | 40 | 115 VAC | 22.5 | 11 | 550 |
| L22K-4053 | 31 | 2,200 | 40 x 53 | 8.5 | 39.5 | 115 VAC | 22.5 | 11 | 580 |
| L22K-TT | 30 | 2,200 | 43 Dia. Rotating | 11.5 | 41.5 | 115 VAC | 22.5 | 11 | 700 |
| L22K-TT4444 | 30 | 2,200 | 44 x 44 Rotating | 11.5 | 41.5 | 115 VAC | 22.5 | 11 | 750 |
| L22K-TT4448 | 30 | 2,200 | 44 x 48 Rotating | 11.5 | 41.5 | 115 VAC | 22.5 | 11 | 760 |
| L22K-TT4848 | 30 | 2,200 | 48 x 48 Rotating | 11.5 | 41.5 | 115 VAC | 22.5 | 11 | 770 |
L44K Lift Table Specifications
| Model | Travel (in.) | Capacity (lbs.) | Platform Size (in.) | Height Lowered (in.) | Height Raised (in.) | Voltage | Approx. Up Time at Full Capacity (sec.) | Approx. Down Time at Full Capacity (sec.) | Approx. Ship Wt (lbs.) |
|---|---|---|---|---|---|---|---|---|---|
| L44K-4052 | 31.75 | 4,400 | 40 x 52 | 9 | 40.75 | 115 VAC | 33 | 16 | 850 |
| L44K-TT | 31 | 4,400 | 43 Dia. Rotating | 11.5 | 41.5 | 115 VAC | 33 | 16 | 1,000 |
| L44K-TT4444 | 31 | 4,400 | 44 x 44 Rotating | 11.5 | 41.5 | 115 VAC | 33 | 16 | 1,050 |
| L44K-TT4448 | 31 | 4,400 | 44 x 48 Rotating | 11.5 | 41.5 | 115 VAC | 33 | 16 | 1,060 |
| L44K-TT4848 | 31 | 4,400 | 48 x 48 Rotating | 11.5 | 41.5 | 115 VAC | 33 | 16 | 1,070 |
L66K Lift Table Specifications
| Model | Travel (in.) | Capacity (lbs.) | Platform Size (in.) | Height Lowered (in.) | Height Raised (in.) | Voltage | Approx. Up Time at Full Capacity (sec.) | Approx. Down Time at Full Capacity (sec.) | Approx. Ship Wt (lbs.) |
|---|---|---|---|---|---|---|---|---|---|
| L66K-4059 | 40.5 | 6,600 | 40 x 59 | 9.5 | 50 | 115 VAC | 58 | 27 | 1,060 |
| L66K-4078 | 49 | 6,600 | 40 x 78 | 11 | 60 | 115 VAC | 58 | 27 | 1,260 |
| L66K-TT | 39.5 | 6,600 | 43 Dia. Rotating | 12.5 | 51 | 115 VAC | 58 | 27 | 1,210 |
| L66K-TT4444 | 39.5 | 6,600 | 44 x 48 Rotating | 12.5 | 51 | 115 VAC | 58 | 27 | 1,260 |
| L66K-TT4448 | 39.5 | 6,600 | 48 x 48 Rotating | 12.5 | 51 | 115 VAC | 58 | 27 | 1,270 |
| L66K-TT4848 | 39.5 | 6,600 | 48 x 48 Rotating | 12.5 | 51 | 115 VAC | 58 | 27 | 1,280 |
ALPHA Options and Accessories
Alpha Modular attachments
Alpha with TT Top
Alpha with Square TT

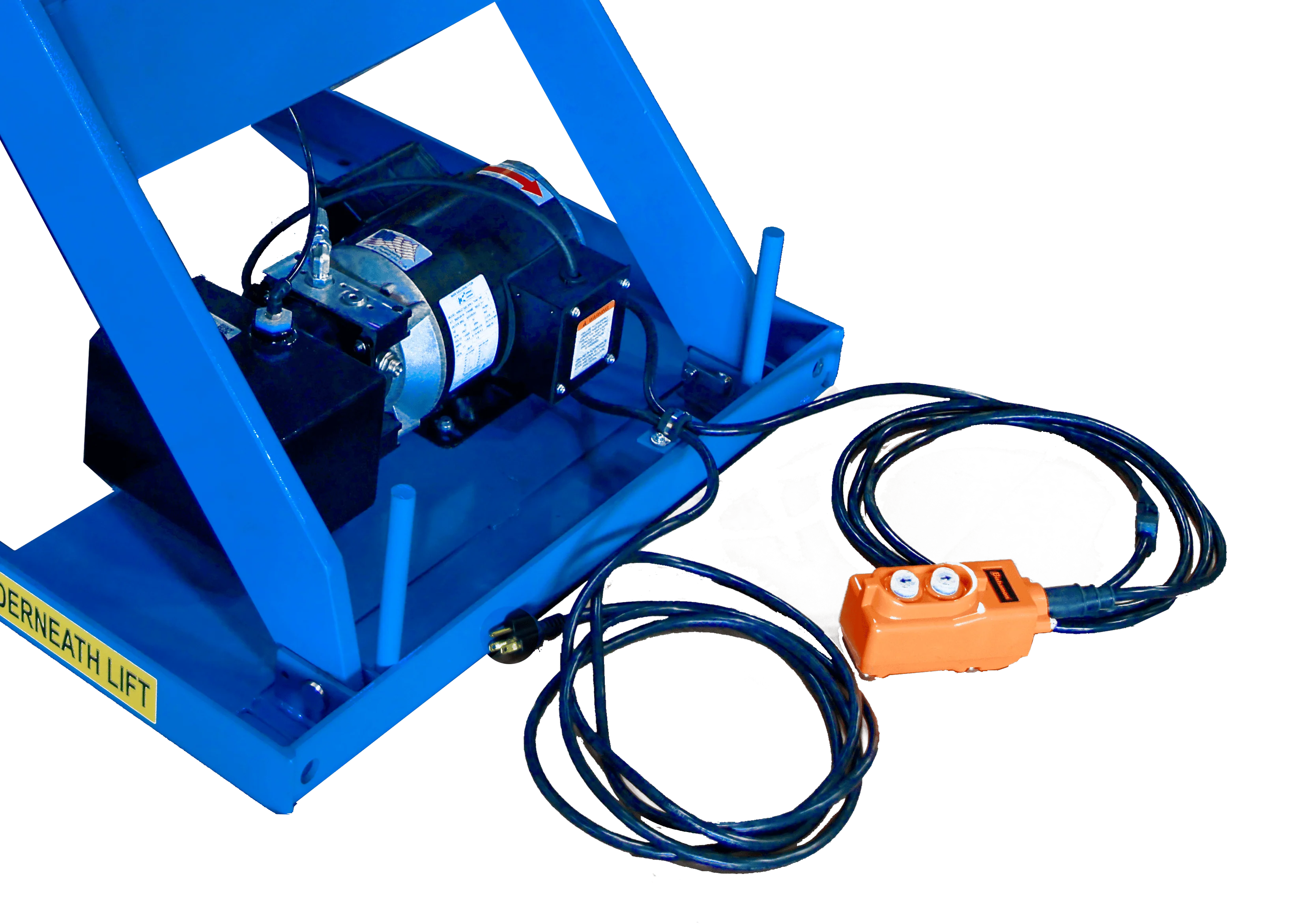

Alpha with Hand Controller
Alpha with Foot Controller
Alpha Safety Pin
Alpha with Cart
Alpha with Bellows
Bishamon Products
Frequently Asked Questions
What is the weight capacity of the Alpha Lift Table?
The Alpha Lift Table is available in multiple models with capacities ranging from 2,000 to 5,000 lbs. Each unit is designed for safe and stable lifting in demanding industrial environments.
Can the Alpha Lift Table be customized for specific applications?
Yes, Alpha lift tables can be customized with options such as different platform sizes, foot controls, and safety features to meet the unique needs of your facility.
What industries commonly use the Alpha Lift Table?
The Alpha series is widely used in manufacturing, assembly, warehousing, and maintenance operations where repetitive lifting or material positioning is required.
Is the Alpha Lift Table powered electrically or manually?
The Alpha Lift Table operates using a heavy-duty electric hydraulic system, offering smooth and controlled lifting with the push of a button.
