MobiLeveler ESX Series - Mobile Handling

MobiLeveler™ Series – Mobile Self-Leveling Work Table

The MobiLeveler is available in single and dual spring models. Both models feature an easily accessible gauged weight selector knob that adjusts the spring resistance. It also has a clean, ergonomic design for user comfort. The equipment is finished in a durable powder coat that protects the metal from harmful elements in the environment.
The MobiLeveler will progressively lower when loaded, reducing the need for harmful bending, lifting and stretching. It has a rugged construction that can withstand heavy-duty use in industrial environments. It can be used in a variety of situations to improve worker safety and convenience.

ESX Model Specifications

MOBILEVELER ESX SPECIFICATIONS

Model Travel Collapsed Cap. Range Min-Max Platform Hight Min.(A) Max.(B) Platform Size W(C) x L(D) Overall Size W(E) x L(F) x H(G) Approx. Ship Weight
ESX-10 15.8 in. 66 – 220 lbs. 10.4 x 26.2 in. 17.8 x 27.6 in. 17.8 x 33.3 x 31.3 in. 90 lbs.
ESX-21 16.6 in. 175 – 460 lbs. 13.8 x 30.4 in. 19.8 x 32.3 in. 19.8 x 40.0 x 35.5 in. 170 lbs.
ESX-40 16.6 in. 220 – 880 lbs. 14.5 x 31.1 in. 20.5 x 39.8 in. 20.5 x 48.5 x 35.5 in. 280 lbs.

ESX Highlights

Bishamon mobileleveler high quality casters

Quality Casters

High Quality Casters With Locking Brake For Smooth Transport

Bishamon mobileleveler scissor locking pin

Locking Pin

Heavy-Duty, Scissor Locking Pin For Maintenance Safety

Selector Knob

Convenient Gauged Weight Selector Knob For Adjusting Capacity

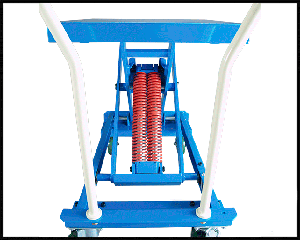

Bishamon mobileleveler scissor rollers

Stability

Entrapped Scissor Rollers For Added Stability

ESX Design Features

  • Self-leveling, load weight compensating
  • Easily accessible gauged weight selector knob
  • Single and dual spring models
  • Heavy-duty maintenance, scissor locking pi
  • Steel work platforms
  • Rugged construction, with heavy-gauge steel and sturdy welds throughout
  • Clean design with minimum maintenance required
  • Durable powder-coated finish
  • High quality casters with brake
