MobiLift BX - BXB Series Lift Tables

Lift Table MobiLift™ BX (Manual Lift) & BXB (Electric Lift) Series
Electric-Hydraulic Scissor​

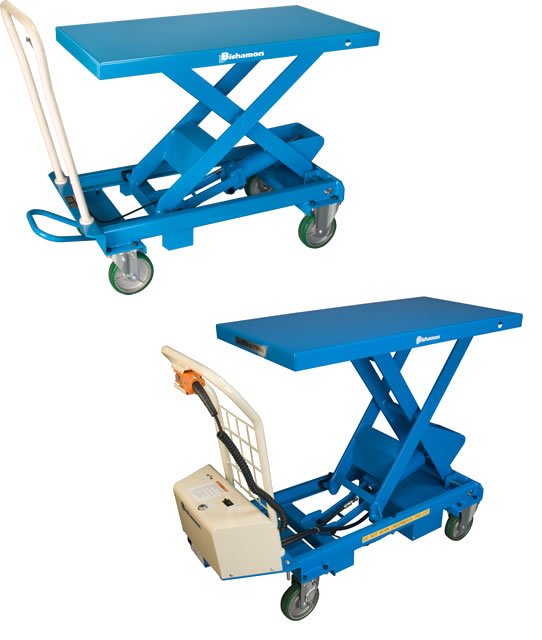

Mobile Lift Tables BX BXB Main Image

Bishamon’s MobiLift™ scissor lift tables minimize lifting, reaching and stretching by allowing workers to easily move and position loads. They are designed with improved ergonomics, rugged construction, and high quality materials for excellent performance and reliability.
MobiLift tables are available in a variety of capacities and raised heights, and can satisfy a wide range of applications. All models are made with heavy-duty materials and include captured scissor rollers for maximum stability. They feature high quality casters and wheels for excellent maneuverability, and a foot actuated caster brake. All MobiLift tables are powder coated for an attractive durable finish.

  • EASY MOBILITY - Premium Casters And Push Handle For Easy Mobility
  • CAPACITY - Load Capacities From 330 To 1760 Lbs.

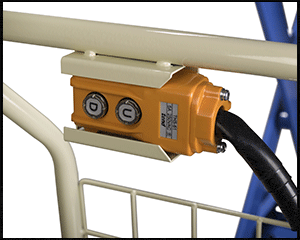

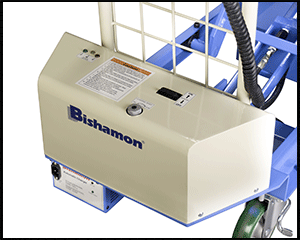

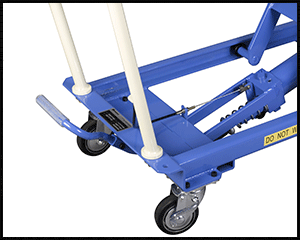

  • PUMP OPERATION - Battery Push Button Or Manual Foot Pump Operation
  • MODEL TYPES - Double Scissor And Stainless Steel Models Available

BX Model Specifications

BX Mobile Lift Table Specifications

ModelTravelCapacityPlatform Hight
Min. (A) Max. (B)		Platform Size
W (E) x L (D)		Overall Size
W (E) x L (F) x H (G)		Pumps to
Max. Height		Approx.
Ship Weight
BX-1520.4 in.330 lbs.8.4 x 28.8 in.17.7 x 27.6 in.17.7 x 33.6 x 31.3 in.1596 lbs.
BX-2522.7 in.660 lbs.11.3 x 34.1 in.19.7 x 32.0 in.19.7 x 39.7 x 35.3 in.25192 lbs.
BX-5022.1 in.1,100 lbs.17.2 x 39.3 in.20.4 x 39.8 in.20.5 x 46.9 x 37.8 in.50300 lbs.
BX-7522.1 in.1,760 lbs.17.2 x 39.3 in.20.4 x 39.8 in.20.5 x 49.5 x 37.8 in.67300 lbs.

Double Scissor Lift Models

ModelTravelCapacityPlatform Hight
Min. (A) Max. (B)		Platform Size
W (E) x L (D)		Overall Size
W (E) x L (F) x H (G)		Pumps to
Max. Height		Approx.
Ship Weight
BX-30S45.1 in.660 lbs.17.0 x 62.1 in.20.4 x 39.8 in.20.5 x 49.5 x 37.8 in.64349 lbs.
BX-50S23.0 in.1,100 lbs.16.5 x 39.5 in.18.1 x 25.6 in.18.1 x 37.2 x 37.0 in.66273 lbs.
BX-50W45.1 in.1,100 lbs.17.0 x 62.1 in.20.4 x 39.8 in.20.5 x 49.5 x 37.8 in.90379 lbs.

Stainless Steel Lift Models

ModelTravelCapacityPlatform Hight
Min. (A) Max. (B)		Platform Size
W (E) x L (D)		Overall Size
W (E) x L (F) x H (G)		Pumps to
Max. Height		Approx.
Ship Weight
BXS-1020.4 in.220 lbs.8.4 x 28.8 in.17.7 x 27.6 in.17.7 x 33.6 x 31.3 in.1589 lbs.
BXS-2022.7 in.440 lbs.11.3 x 34.1 in.19.7 x 32.0 in.19.7 x 39.7 x 35.3 in.25158 lbs.

Battery Operated Models

ModelTravelCapacityPlatform Hight
Min. (A) Max. (B)		Platform Size
W (E) x L (D)		Overall Size
W (E) x L (F) x H (G)		Pumps to
Max. Height		Approx.
Ship Weight
BX-30B23.5 in.660 lbs.11.5 x 35.0 in.19.7 x 32.1 in.9.7 x 41.7 x 34.6 in.10 sec.277 lbs.
BX-50B23.1 in.1,100 lbs.17.2 x 40.4 in.20.5 x 39.8 in.20.4 x 50.0 x 37.4 in.10 sec.388 lbs.
BX-80B21.1 in.1,760 lbs.17.2 x 38.4 in.20.5 x 39.8 in.20.5 x 49.4 x 37.4 in.12 sec.399 lbs.

Double Scissors Battery Operated Models

ModelTravelCapacityPlatform Hight
Min. (A) Max. (B)		Platform Size
W (E) x L (D)		Overall Size
W (E) x L (F) x H (G)		Pumps to
Max. Height		Approx.
Ship Weight
BX-15WB39.0 in.330 lbs.15.2 x 54.1 in.19.7 x 32.1 in.19.7 x 39.7 x 35.4 in.10 sec.356 lbs.
BX-30SB46.3v in.660 lbs.17.5 x 63.8 in.20.5 x 39.8 in.20.4 x 50.0 x 37.4 in.12 sec.450 lbs.
BX-50WB46.1 in.1,100 lbs.17.1 x 63.2 in.20.5 x 39.8 in.20.5 x 49.4 x 37.4 in.17 sec.490 lbs.

MobiLift Highlights

MobiLift Design Features

  • Heavy-duty construction with captured scissor rollers for maximum stability
  • High quality casters and wheels for exceptional rollability
  • Foot actuated caster brake
  • Heavy duty maintenance scissor lock pin
  • Durable powder coated finish

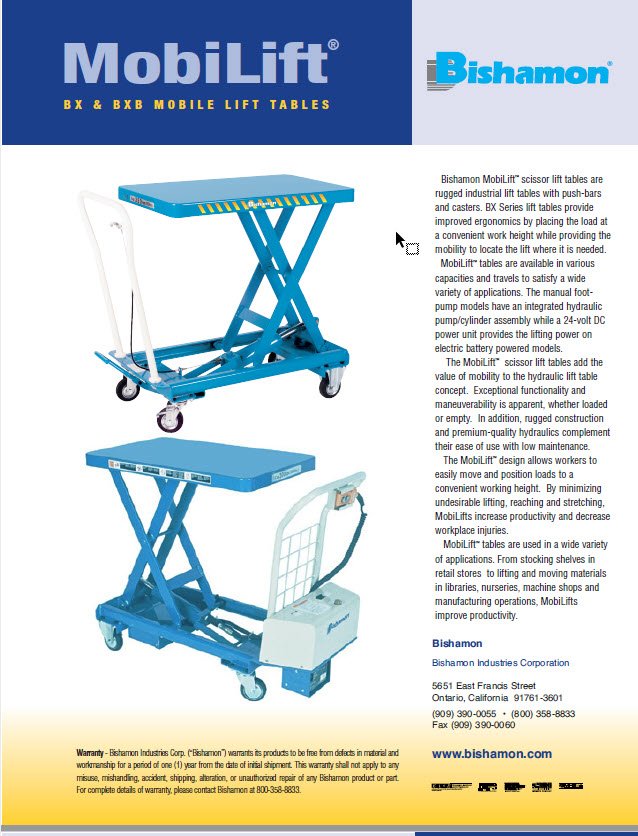

LITERATURE PAGE
